5000BPH Single Servo Motor Bottle Moulding Machine

Basic Info

Model No.: WBB-4S

Type: Special Structure of Blow Molding Machine

Raw Material: PET

Making Method of Parison: Stretch Blow

Automation: Automatic

Computerized: Computerized

Certification: CE

Additional Info

Packaging: Wooden Box

Productivity: 5000BPH

Brand: Winiber

Transportation: Ocean

Place of Origin: China

Supply Ability: 10 Sets/Month

HS Code: 8477309000

Port: NINGBO,SHANGHAI

Product Description

Product Description

WBB-4S Single Servo Motor Bottle Moulding Machine is a 4 cavity automatic bottle blowing machine, which output is about 4000BPH. max.blow bottles 2L. It is used to blow bottles from PET preforms which can be bought from the market directly, or produced by our injection molding machine and PET preform mould. We will design the bottle shape basing on clients’requirement before making bottle mould. Also suggest the preform weight basing on bottle type and design.

Application: Food, oil, carbonated drinks, mineral water, alcohol, medicine, chemical etc.

PET Bottle Moulding Machine Feature

• Adopt human-computer interface to control the whole working procedures, auto-loading, auto blowing, auto dropping. Action cylinders are all assembled with magnetic conduction switches. Connect with PLC to control every step and test every cylinder. Next action will continue after the former step done. If former step is not finished, alarm automatically and do not work. PLC displays problem position.
• Fast Speed, accurate position, smooth action.
• According to special demand, adopt cross double crank pressed clamping, with strong clamping force. Mould open stroke can be adjustable according to the bottle size to save time.
• Far infrared heater lamps have strong penetrations, preform are heated uniformly while rotating, PLC or electronic pressure adjustor controls each group temperature separately.
• particular pre-heater design makes preform close while heating. Change space, shorten heating tunnel and reduce energy consumption according to the bottle size while blowing.
• The air supply system consists of slight blow, high pressure blow, low pressure actions, to supply enough air for different products.
• Reliable and special single valve design make all the air system clear.
• Shifting servo motor is more accurate and faster
• Connecting rod automatic lubrication oil device protects the machine well.

Technical Parameter

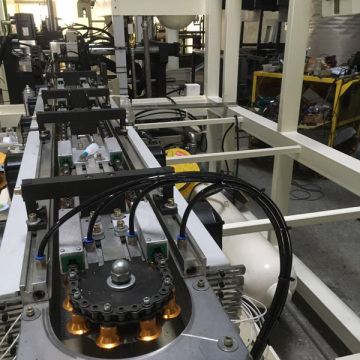

Detailed Photos of PET Bottle Moulding Machine

About us

We have more than 20 years knowledge and experience on PET Water/juice/carbonated drinks production line. Our exporting product includes: Injection molding machine, PET preform mould, PET blow moulding machine, Water treatment system, Filling machine and Packaging machine etc.

Q: What is the warranty if we buy your machines?

A: We offer the high quality machines with 1 year guarantee start from the machine reach to your factory. Also your share the lifelong technical support.

Q: How about the spare parts?

A: We will send one year enough spare parts together with machines for your stock. During the warranty time, if some spare parts broke without human problem, we will send free for you.

Q: How to install my machines when it arrives? What is the cost?

A: We will send our engineer to your factory to install the machines and train your engineers how to operate and maintain the machines. Customer pay for visa, round-trip tickets, room and accommodation, also USD80/day/ person(engineer salary).

Q: How long time for installation?

A: According to the machine you order, usually we will send one or two engineer, it takes about 7to 20days.

Q: When can I get my machine after I paid?

A: Usually the production time is around 25-60 days. The exactly will be decided by which machine u order.
